Name: SM8S22CAH
Brand: Eaton - Electronics Division
SKU: SM8S22CAH
Price: 1.64 USD
Availability: InStock

REF: SM8S22CAH Eaton - Electronics Division

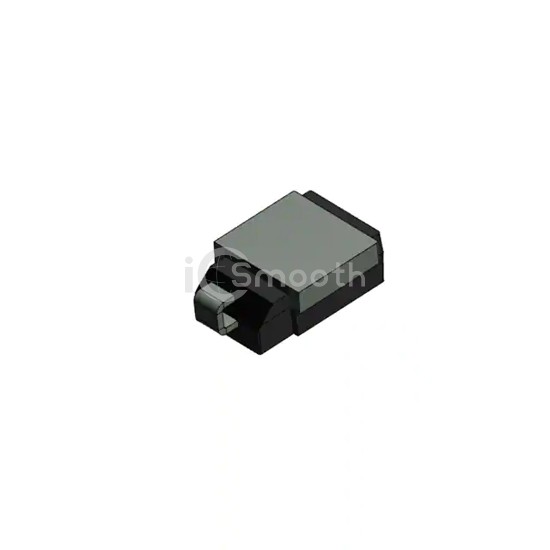

SM8S22CAH

Eaton - Electronics Division

TVS DIODE 22VWM 35.5VC BI

SM8S22CAH is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 22VWM 35.5VC BI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-218AB.

Datasheet Request a Quote

In Stock: 5,381

Tiered Pricing USD

750+ $1.6367 —

1,500+ $1.5293 -7%

2,250+ $1.4750 -10% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	186A

Power - Peak Pulse	6600W (6.6kW)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-218AB
Supplier Device Package	DO-218AB
