Name: 5-0SMDJ22CAH
Brand: Eaton - Electronics Division
SKU: 5-0SMDJ22CAH
Price: 0.90 USD
Availability: InStock

REF: 5-0SMDJ22CAH Eaton - Electronics Division

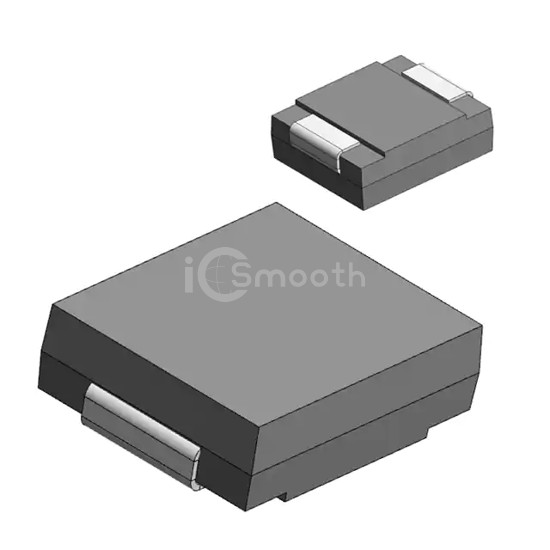

5-0SMDJ22CAH

Eaton - Electronics Division

TVS DIODE 22VWM BI

5-0SMDJ22CAH is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 22VWM BI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 7,572

Tiered Pricing USD

3,000+ $0.9023 —

6,000+ $0.8688 -4% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	141A

Power - Peak Pulse	5000W (5kW)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC
