SchottkyD, 20V, 0.5A

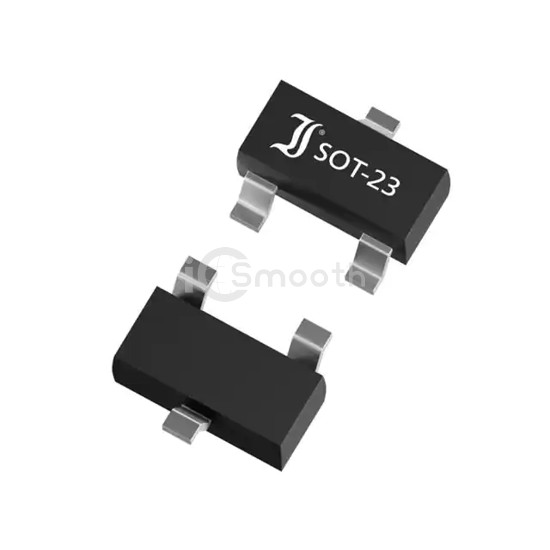

SDM0520S is a Diodes - Rectifiers - Arrays manufactured by Diotec Semiconductor. SchottkyD, 20V, 0.5A. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 1,757
| Product Status | Active |
|---|---|
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) (per Diode) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
|---|---|
| Current - Reverse Leakage @ Vr | 300 µA @ 20 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
