Name: ESD5Z12
Brand: Diotec Semiconductor
SKU: ESD5Z12
Price: 0.21 USD
Availability: InStock

REF: ESD5Z12 Diotec Semiconductor

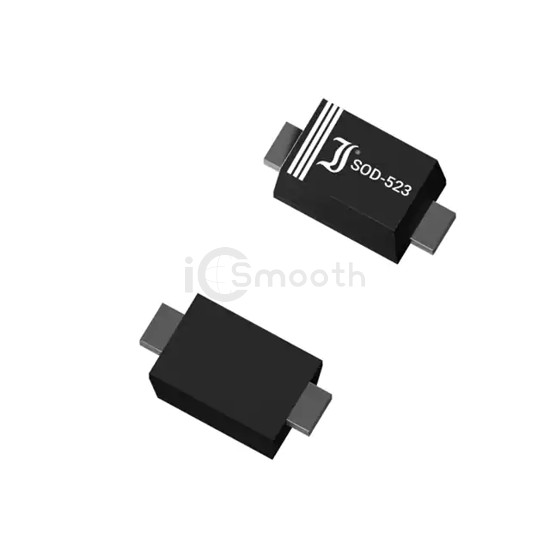

ESD5Z12

TVS DIODE 12VWM 17VC SOD523

ESD5Z12 is a TVS - Diodes manufactured by Diotec Semiconductor. TVS DIODE 12VWM 17VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 20,000

Tiered Pricing USD

1+ $0.2100 —

10+ $0.1040 -50%

100+ $0.0630 -70%

500+ $0.0540 -74%

1,000+ $0.0400 -81%

4,000+ $0.0398 -81%

8,000+ $0.0392 -81% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V
Voltage - Breakdown (Min)	14.1V
Voltage - Clamping (Max) @ Ipp	17V
Current - Peak Pulse (10/1000µs)	5A (8/20µs)

Power - Peak Pulse	240W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	55pF @ 1MHz
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
