Name: DI78L24DAB
Brand: Diotec Semiconductor
SKU: DI78L24DAB
Price: 0.13 USD
Availability: InStock

REF: DI78L24DAB Diotec Semiconductor

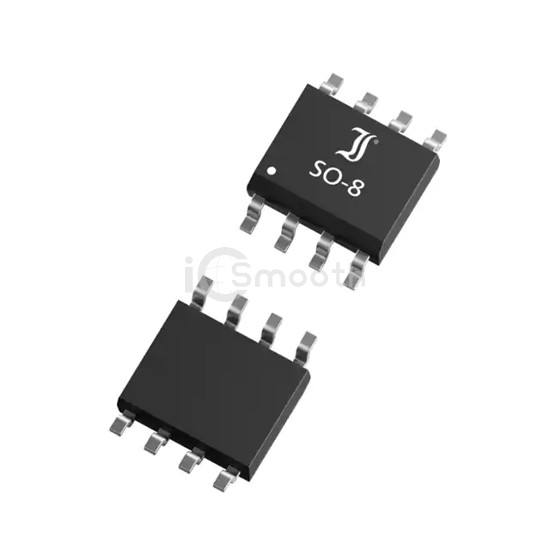

DI78L24DAB

IC REG LINEAR 24V 100MA 8SO

DI78L24DAB is a PMIC - Voltage Regulators - Linear manufactured by Diotec Semiconductor. IC REG LINEAR 24V 100MA 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), current - output 100mA.

Datasheet Request a Quote

In Stock: 4,000

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	24V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	100mA

Current - Quiescent (Iq)	6.5 mA
Current - Supply (Max)	-
PSRR	37dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO
