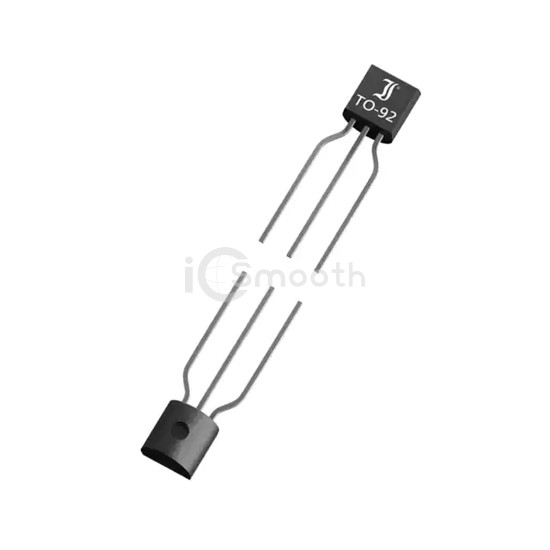

Name: DI78L09ZAB
Brand: Diotec Semiconductor
SKU: DI78L09ZAB
Price: 0.08 USD
Availability: InStock

REF: DI78L09ZAB Diotec Semiconductor

DI78L09ZAB

IC REG LINEAR 9V 100MA TO92

DI78L09ZAB is a PMIC - Voltage Regulators - Linear manufactured by Diotec Semiconductor. IC REG LINEAR 9V 100MA TO92. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), current - output 100mA.

Request a Quote

In Stock: 2,000

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	9V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.7V @ 100mA
Current - Output	100mA

Current - Quiescent (Iq)	6 mA
Current - Supply (Max)	-
PSRR	44dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
