BZT52B22

In Stock: 6,406

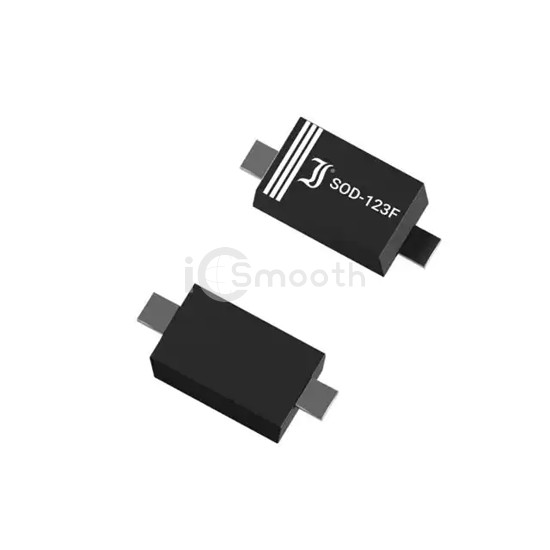

BZT52B22 - Diotec Semiconductor - Diodes - Zener - Single
REF: BZT52B22 Diotec Semiconductor
BZT52B22

Diotec Semiconductor

Zener, 22V, 0.5W, 2%

BZT52B22 is a Diodes - Zener - Single manufactured by Diotec Semiconductor. Zener, 22V, 0.5W, 2%. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case SOD-123F, power - max 500 mW.

Datasheet Request a Quote

In Stock: 6,406

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±2%
Power - Max500 mW
Impedance (Max) (Zzt)100 Ohms
Current - Reverse Leakage @ Vr100 nA @ 15 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-50°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageSOD-123F
