SchottkyD, 30V, 0.2A

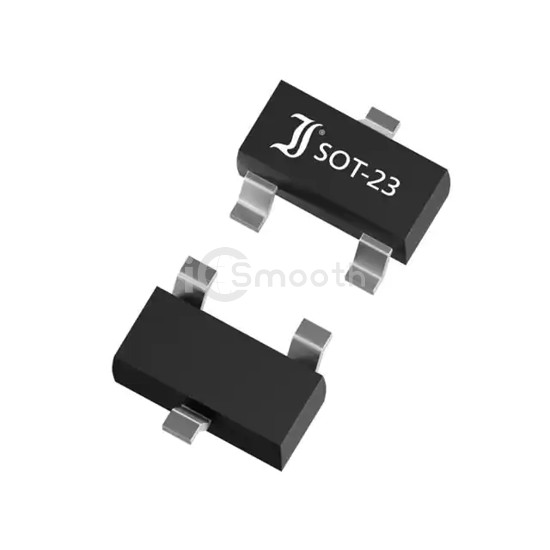

BAT54 is a Diodes - Rectifiers - Single manufactured by Diotec Semiconductor. SchottkyD, 30V, 0.2A. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 1,843
| Product Status | Active |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
|---|---|
| Capacitance @ Vr, F | 10pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Operating Temperature - Junction | -55°C ~ 150°C |
