Schottky D, 20V, 1.00A

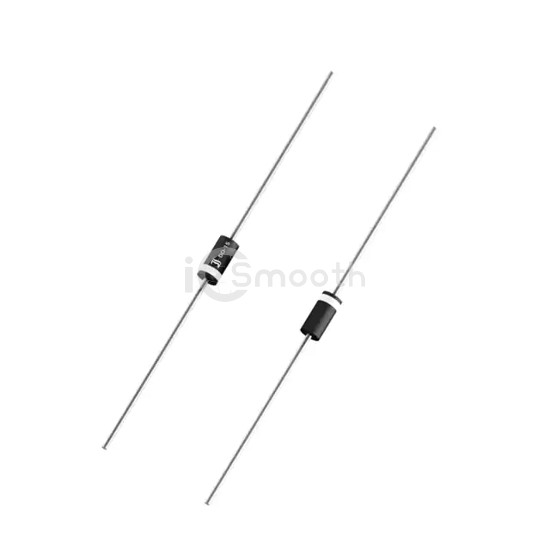

1N5817 is a Diodes - Rectifiers - Single manufactured by Diotec Semiconductor. Schottky D, 20V, 1.00A. Key specifications: mounting type Through Hole, package / case DO-204AC, DO-15, Axial.
In Stock: 7,835
| Product Status | Active |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 20 V |
|---|---|
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO15/DO204AC |
| Operating Temperature - Junction | -50°C ~ 150°C |
