ZXTR1135PD8-13

In Stock: 6,374

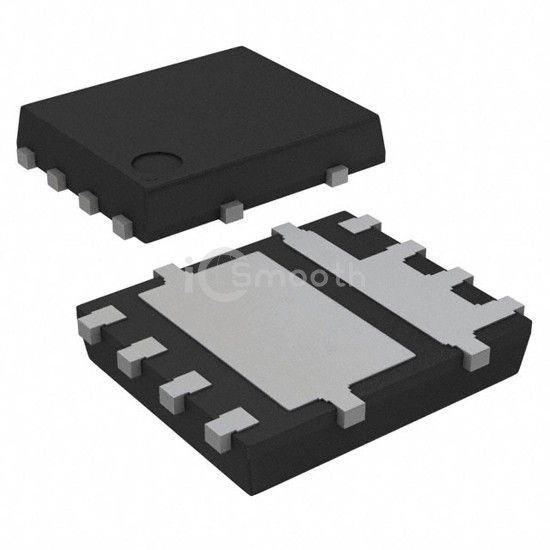

ZXTR1135PD8-13 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: ZXTR1135PD8-13 Diodes Incorporated
ZXTR1135PD8-13

Diodes Incorporated

IC REG LIN 5V/13V 50MA PWRDI5060

ZXTR1135PD8-13 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LIN 5V/13V 50MA PWRDI5060. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 8-PowerTDFN, current - output 50mA, 50mA.

Datasheet Request a Quote

In Stock: 6,374

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)100V
Voltage - Output (Min/Fixed)5V, 13V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output50mA, 50mA
Current - Quiescent (Iq)780 µA
Current - Supply (Max)-
PSRR57dB (100Hz), 45dB (100Hz)
Control Features-
Protection Features-
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePowerDI5060-8 (Type B)
