ZXTN620MATA

In Stock: 8,809

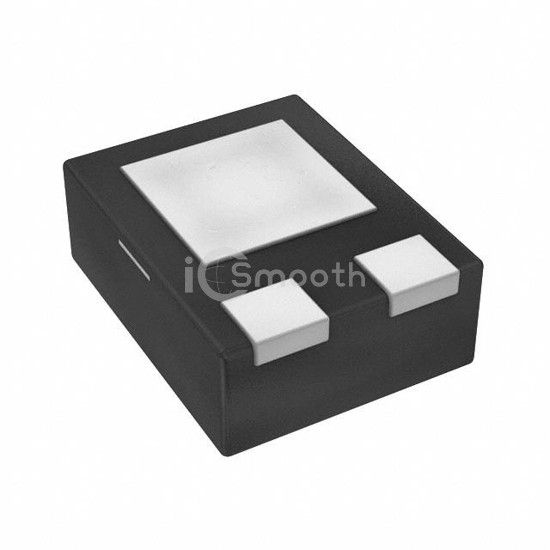

ZXTN620MATA - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: ZXTN620MATA Diodes Incorporated
ZXTN620MATA

Diodes Incorporated

TRANS NPN 80V 3.5A DFN2020B-3

ZXTN620MATA is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 80V 3.5A DFN2020B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN, current - collector (ic) (max) 3.5 A.

Datasheet Request a Quote

In Stock: 8,809

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)3.5 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic325mV @ 300mA, 3.5A
Current - Collector Cutoff (Max)25nA
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 200mA, 2V
Power - Max3 W
Frequency - Transition160MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-UDFN
Supplier Device PackageDFN2020B-3
