ZXTN618MATA

In Stock: 9,264

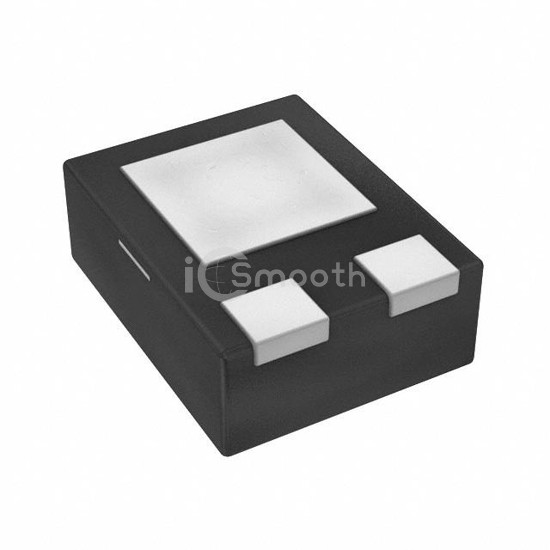

ZXTN618MATA - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: ZXTN618MATA Diodes Incorporated
ZXTN618MATA

Diodes Incorporated

TRANS NPN 20V 4.5A DFN2020B-3

ZXTN618MATA is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 20V 4.5A DFN2020B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN, current - collector (ic) (max) 4.5 A.

Datasheet Request a Quote

In Stock: 9,264

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)4.5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic270mV @ 125mA, 4.5A
Current - Collector Cutoff (Max)25nA
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 2A, 2V
Power - Max1.5 W
Frequency - Transition140MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-UDFN
Supplier Device PackageDFN2020B-3
