ZXTN617MATA

In Stock: 1,168

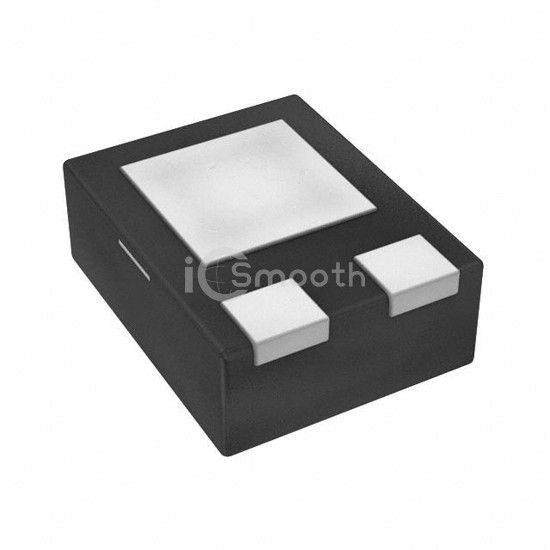

ZXTN617MATA - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: ZXTN617MATA Diodes Incorporated
ZXTN617MATA

Diodes Incorporated

TRANS NPN 15V 4.5A DFN2020B-3

ZXTN617MATA is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 15V 4.5A DFN2020B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN, current - collector (ic) (max) 4.5 A.

Datasheet Request a Quote

In Stock: 1,168

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)4.5 A
Voltage - Collector Emitter Breakdown (Max)15 V
Vce Saturation (Max) @ Ib, Ic280mV @ 50mA, 4.5A
Current - Collector Cutoff (Max)25nA
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 3A, 2V
Power - Max1.5 W
Frequency - Transition120MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-UDFN
Supplier Device PackageDFN2020B-3
