ZXTN26020DMFTA

In Stock: 3,154

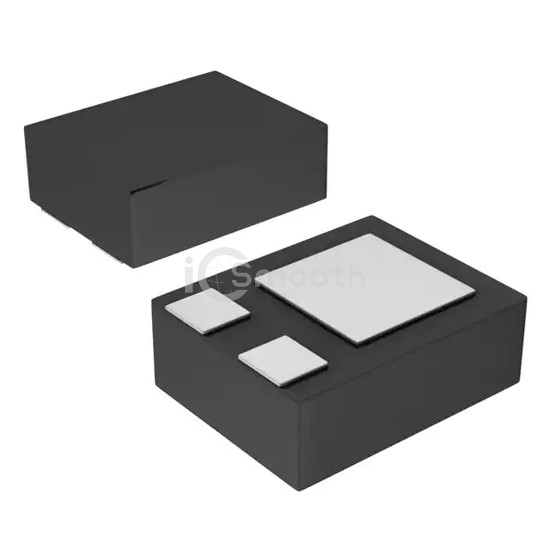

ZXTN26020DMFTA - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: ZXTN26020DMFTA Diodes Incorporated
ZXTN26020DMFTA

Diodes Incorporated

TRANS NPN 20V 1.5A 3DFN

ZXTN26020DMFTA is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 20V 1.5A 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XDFN, current - collector (ic) (max) 1.5 A.

Datasheet Request a Quote

In Stock: 3,154

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic290mV @ 40mA, 2A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce290 @ 500mA, 2V
Power - Max1 W
Frequency - Transition260MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-XDFN
Supplier Device PackageDFN1411-3
