Name: ZXTDBM832TA
Brand: Diodes Incorporated
SKU: ZXTDBM832TA
Availability: InStock

REF: ZXTDBM832TA Diodes Incorporated

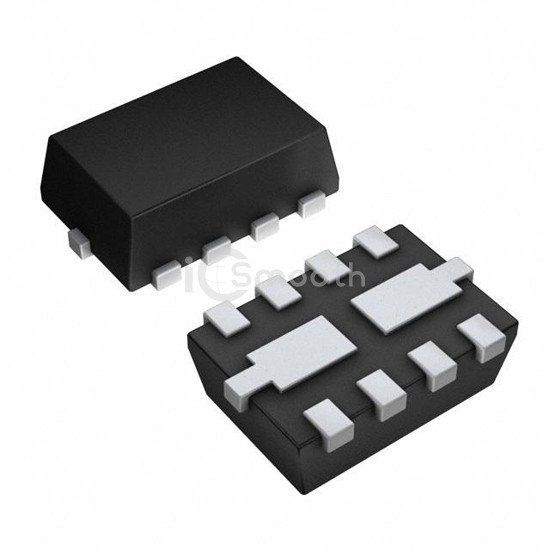

ZXTDBM832TA

TRANS 2NPN 20V 4.5A 8MLP

ZXTDBM832TA is a Transistors - Bipolar (BJT) - Arrays manufactured by Diodes Incorporated. TRANS 2NPN 20V 4.5A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, current - collector (ic) (max) 4.5A.

Datasheet Request a Quote

In Stock: 6,493

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	4.5A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	270mV @ 125mA, 4.5A
Current - Collector Cutoff (Max)	25nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2A, 2V

Power - Max	1.7W
Frequency - Transition	140MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-MLP (3x2)
