Name: ZXMNS3BM832TA
Brand: Diodes Incorporated
SKU: ZXMNS3BM832TA
Availability: InStock

REF: ZXMNS3BM832TA Diodes Incorporated

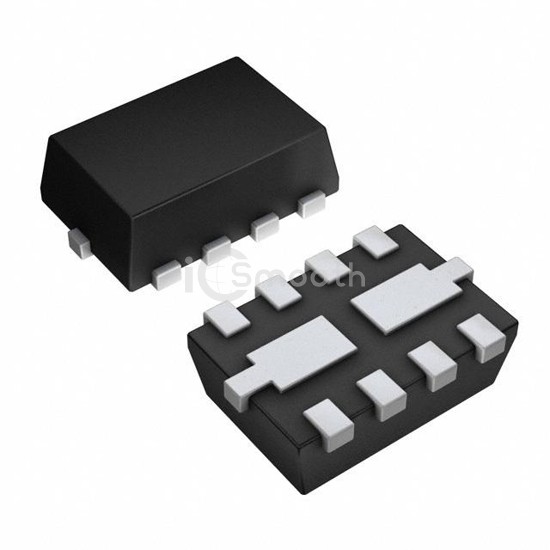

ZXMNS3BM832TA

MOSFET N-CH 30V 2A 8MLP

ZXMNS3BM832TA is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 2A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,848

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	180mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	2.9 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	314 pF @ 15 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3x2)
Package / Case	8-VDFN Exposed Pad
