Name: ZXMN2F34MATA
Brand: Diodes Incorporated
SKU: ZXMN2F34MATA
Availability: InStock

REF: ZXMN2F34MATA Diodes Incorporated

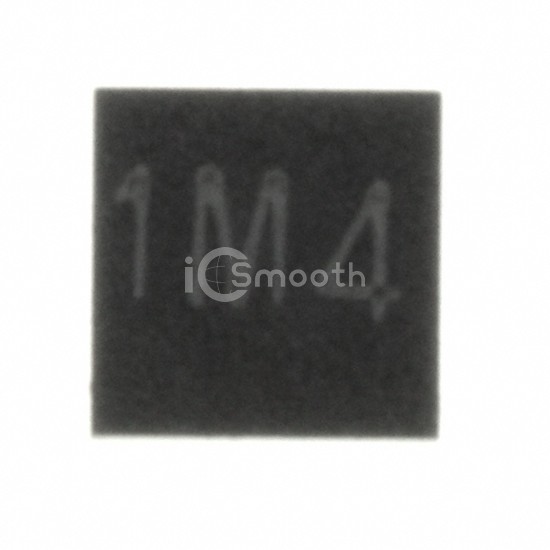

ZXMN2F34MATA

MOSFET N-CH 20V 4A DFN322

ZXMN2F34MATA is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 4A DFN322. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,469

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	60mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.8 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	277 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.35W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN322
Package / Case	3-PowerVDFN
