ZXLD1370QESTTC

In Stock: 2,690

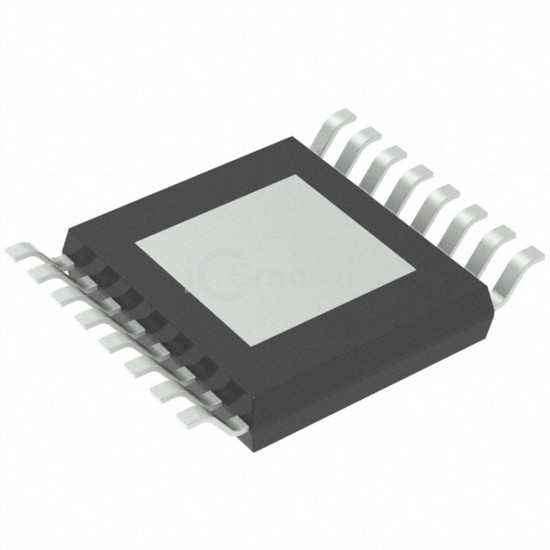

ZXLD1370QESTTC - Diodes Incorporated - PMIC - LED Drivers
REF: ZXLD1370QESTTC Diodes Incorporated
ZXLD1370QESTTC

Diodes Incorporated

LED MV INT SWITCH TSSOP-16EP T&R

ZXLD1370QESTTC is a PMIC - LED Drivers manufactured by Diodes Incorporated. LED MV INT SWITCH TSSOP-16EP T&R. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - output 1.25V ~ 60V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,690

Tiered Pricing USD
1+ $2.5700 —
10+ $1.9100 -26%
25+ $1.7460 -32%
100+ $1.5654 -39%
250+ $1.4793 -42%
500+ $1.4274 -44%
1,000+ $1.3847 -46% BEST

Specifications

16 parameters
Product StatusActive
TypeDC DC Controller
TopologyStep-Down (Buck), Step-Up (Boost)
Internal Switch(s)No
Number of Outputs1
Voltage - Supply (Min)8V
Voltage - Supply (Max)60V
Voltage - Output1.25V ~ 60V
Current - Output / Channel18mA
Frequency300kHz ~ 1MHz
DimmingPWM
ApplicationsGeneral Purpose
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package16-TSSOP-EP
