ZX3CDBS1M832TA

In Stock: 1,336

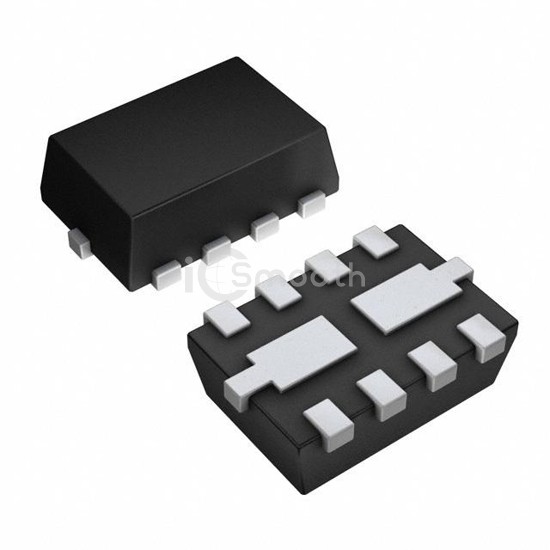

ZX3CDBS1M832TA - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: ZX3CDBS1M832TA Diodes Incorporated
ZX3CDBS1M832TA

Diodes Incorporated

TRANS NPN 20V 4.5A 8MLP

ZX3CDBS1M832TA is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 20V 4.5A 8MLP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-VDFN Exposed Pad, current - collector (ic) (max) 4.5 A.

Datasheet Request a Quote

In Stock: 1,336

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN + Diode (Isolated)
Current - Collector (Ic) (Max)4.5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic270mV @ 125mA, 4.5A
Current - Collector Cutoff (Max)25nA
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 2A, 2V
Power - Max3 W
Frequency - Transition140MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VDFN Exposed Pad
Supplier Device Package8-MLP (3x2)
