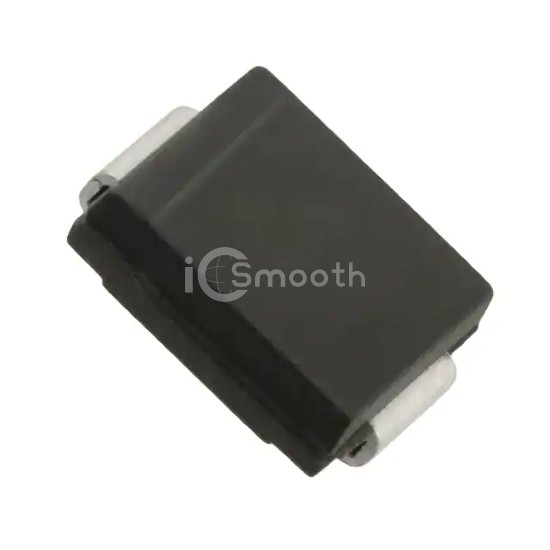

Name: SMCJ22AQ-13-F
Brand: Diodes Incorporated
SKU: SMCJ22AQ-13-F
Price: 1.07 USD
Availability: InStock

REF: SMCJ22AQ-13-F Diodes Incorporated

SMCJ22AQ-13-F

Diodes Incorporated

TVS DIODE 22VWM 35.5VC SMC

SMCJ22AQ-13-F is a TVS - Diodes manufactured by Diodes Incorporated. TVS DIODE 22VWM 35.5VC SMC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 5,913

Tiered Pricing USD

1+ $1.0700 —

10+ $0.6720 -37%

100+ $0.4397 -59%

500+ $0.3399 -68%

1,000+ $0.3077 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	42.2A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC
