SMBJ7.5A-13-F

In Stock: 17,890

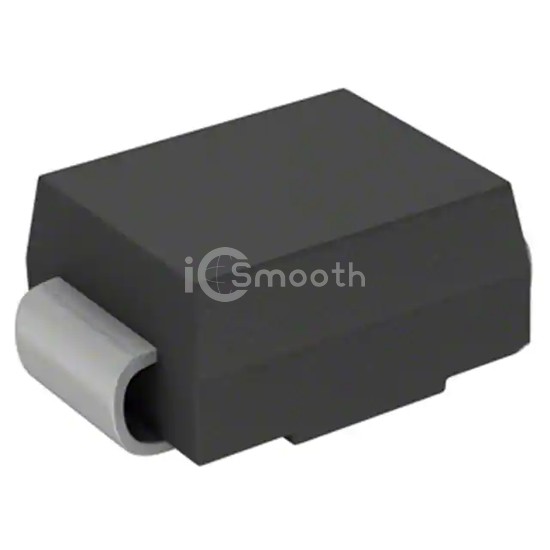

SMBJ7.5A-13-F - Diodes Incorporated - TVS - Diodes
REF: SMBJ7.5A-13-F Diodes Incorporated
SMBJ7.5A-13-F

Diodes Incorporated

TVS DIODE 7.5VWM 12.9VC SMB

SMBJ7.5A-13-F is a TVS - Diodes manufactured by Diodes Incorporated. TVS DIODE 7.5VWM 12.9VC SMB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 17,890

Tiered Pricing USD
1+ $0.3200 —
10+ $0.2130 -33%
100+ $0.1030 -68%
500+ $0.1020 -68%
1,000+ $0.1000 -69% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)7.5V
Voltage - Breakdown (Min)8.33V
Voltage - Clamping (Max) @ Ipp12.9V
Current - Peak Pulse (10/1000µs)46.5A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMB
