SMAZ22-13

In Stock: 8,018

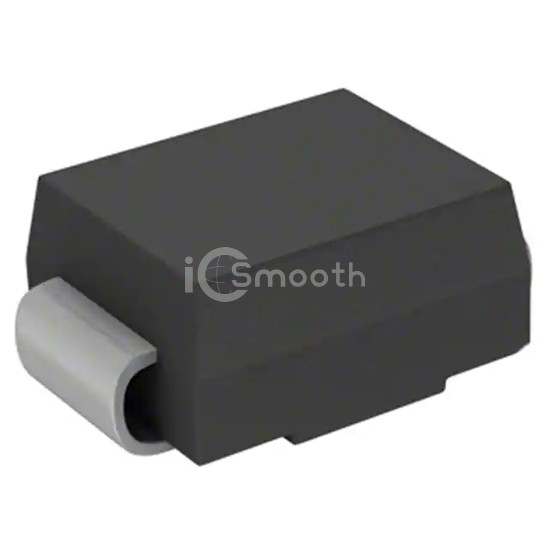

SMAZ22-13 - Diodes Incorporated - Diodes - Zener - Single
REF: SMAZ22-13 Diodes Incorporated
SMAZ22-13

Diodes Incorporated

DIODE ZENER 22V 1W SMA

SMAZ22-13 is a Diodes - Zener - Single manufactured by Diodes Incorporated. DIODE ZENER 22V 1W SMA. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C, package / case DO-214AC, SMA, power - max 1 W.

Datasheet Request a Quote

In Stock: 8,018

Specifications

11 parameters
Product StatusDiscontinued at Digi-Key
Voltage - Zener (Nom) (Vz)22 V
Tolerance±5%
Power - Max1 W
Impedance (Max) (Zzt)15 Ohms
Current - Reverse Leakage @ Vr500 nA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageSMA
