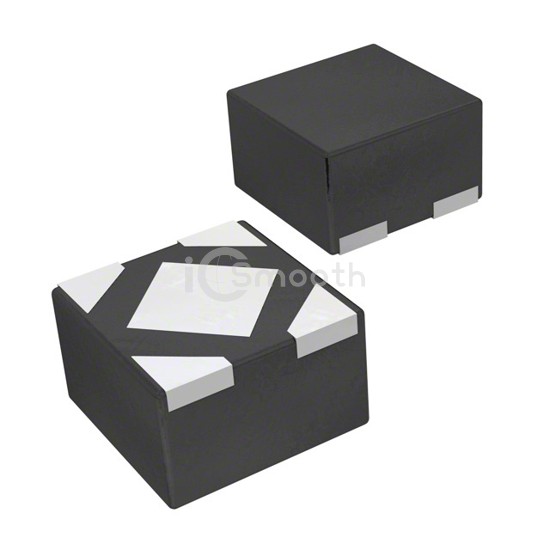

Name: PT7M8216B11XZEX
Brand: Diodes Incorporated
SKU: PT7M8216B11XZEX
Price: 0.23 USD
Availability: InStock

REF: PT7M8216B11XZEX Diodes Incorporated

PT7M8216B11XZEX

Diodes Incorporated

IC REG LINEAR 1.1V 300MA 4UDFN

PT7M8216B11XZEX is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.1V 300MA 4UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XDFN Exposed Pad, current - output 300mA.

Datasheet Request a Quote

In Stock: 5,540

Tiered Pricing USD

3,000+ $0.2323 —

6,000+ $0.2157 -7%

9,000+ $0.2072 -11%

15,000+ $0.1979 -15%

21,000+ $0.1923 -17%

30,000+ $0.1870 -19% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.18V @ 150mA (Typ)
Current - Output	300mA

Current - Quiescent (Iq)	65 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	4-UDFN (1.0x1.0)
