Name: PT7M8216B11XYEX
Brand: Diodes Incorporated
SKU: PT7M8216B11XYEX
Price: 0.23 USD
Availability: InStock

REF: PT7M8216B11XYEX Diodes Incorporated

PT7M8216B11XYEX

Diodes Incorporated

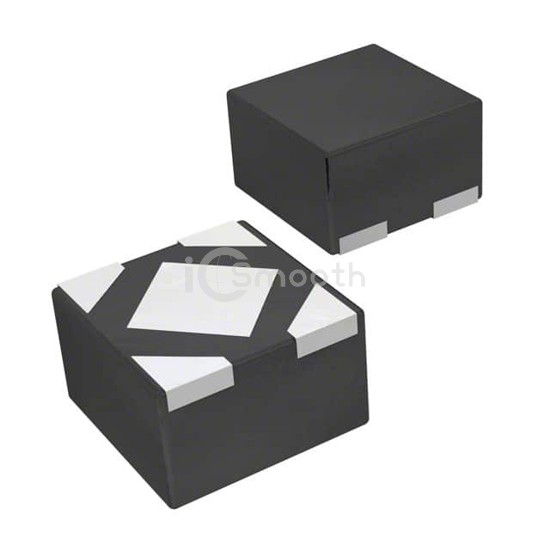

IC REG LINEAR 1.1V 300MA 4UDFN

PT7M8216B11XYEX is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.1V 300MA 4UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFDFN Exposed Pad, current - output 300mA.

Datasheet Request a Quote

In Stock: 2,209

Tiered Pricing USD

5,000+ $0.2332 —

10,000+ $0.2180 -7%

15,000+ $0.2103 -10%

25,000+ $0.2018 -13%

35,000+ $0.1968 -16%

50,000+ $0.1919 -18% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.18V @ 150mA (Typ)
Current - Output	300mA

Current - Quiescent (Iq)	65 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	4-XFDFN Exposed Pad
Supplier Device Package	4-UDFN (0.8x0.8)
