PI74ALVCH16823A

In Stock: 5,424

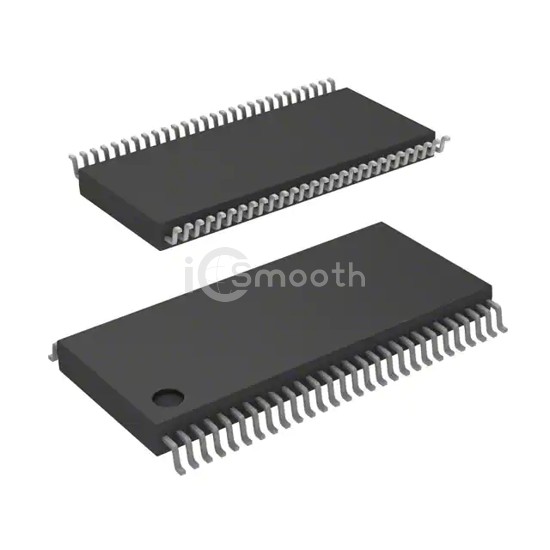

PI74ALVCH16823A - Diodes Incorporated - Logic - Flip Flops
REF: PI74ALVCH16823A Diodes Incorporated
PI74ALVCH16823A

Diodes Incorporated

IC FF D-TYPE DUAL 9BIT 56TSSOP

PI74ALVCH16823A is a Logic - Flip Flops manufactured by Diodes Incorporated. IC FF D-TYPE DUAL 9BIT 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.3V ~ 3.6V, package / case 56-TFSOP (0.240", 6.10mm Width).

Datasheet Request a Quote

In Stock: 5,424

Specifications

17 parameters
Product StatusObsolete
FunctionMaster Reset
TypeD-Type
Output TypeTri-State, Non-Inverted
Number of Elements2
Number of Bits per Element9
Clock Frequency150 MHz
Max Propagation Delay @ V, Max CL-
Trigger TypePositive Edge
Current - Output High, Low24mA, 24mA
Voltage - Supply2.3V ~ 3.6V
Current - Quiescent (Iq)40 µA
Input Capacitance4.5 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package56-TSSOP
Package / Case56-TFSOP (0.240", 6.10mm Width)
