PI74ALVCH16721A

In Stock: 6,077

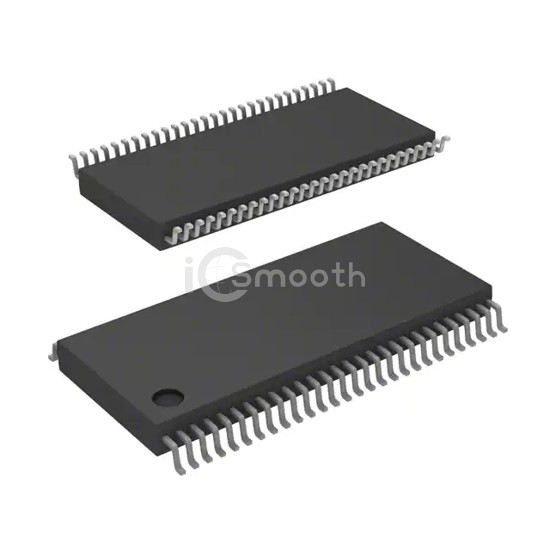

PI74ALVCH16721A - Diodes Incorporated - Logic - Flip Flops
REF: PI74ALVCH16721A Diodes Incorporated
PI74ALVCH16721A

Diodes Incorporated

IC FF D-TYPE SNGL 20BIT 56TSSOP

PI74ALVCH16721A is a Logic - Flip Flops manufactured by Diodes Incorporated. IC FF D-TYPE SNGL 20BIT 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.3V ~ 3.6V, package / case 56-TFSOP (0.240", 6.10mm Width).

Datasheet Request a Quote

In Stock: 6,077

Specifications

17 parameters
Product StatusObsolete
FunctionStandard
TypeD-Type
Output TypeTri-State, Non-Inverted
Number of Elements1
Number of Bits per Element20
Clock Frequency150 MHz
Max Propagation Delay @ V, Max CL4.3ns @ 3.3V, 50pF
Trigger TypePositive Edge
Current - Output High, Low24mA, 24mA
Voltage - Supply2.3V ~ 3.6V
Current - Quiescent (Iq)40 µA
Input Capacitance3 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package56-TSSOP
Package / Case56-TFSOP (0.240", 6.10mm Width)
