PI4ULS5V104GAEX

In Stock: 4,010

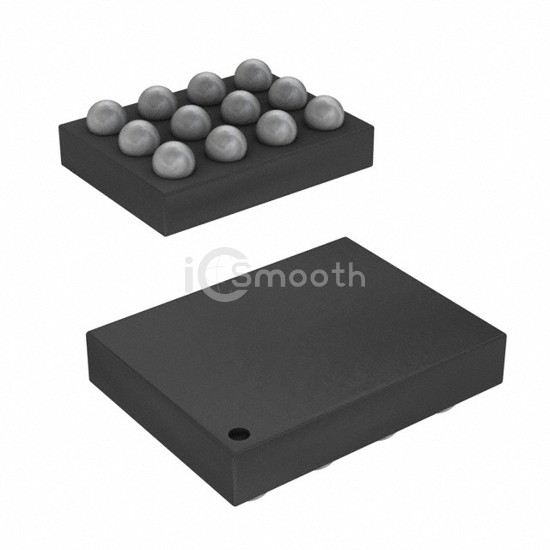

PI4ULS5V104GAEX - Diodes Incorporated - Logic - Translators, Level Shifters
REF: PI4ULS5V104GAEX Diodes Incorporated
PI4ULS5V104GAEX

Diodes Incorporated

IC TRNSLTR BIDIRECTIONAL 12CSP

PI4ULS5V104GAEX is a Logic - Translators, Level Shifters manufactured by Diodes Incorporated. IC TRNSLTR BIDIRECTIONAL 12CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, CSPBGA, output type Tri-State, Non-Inverted.

Datasheet Request a Quote

In Stock: 4,010

Specifications

16 parameters
Product StatusObsolete
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit4
Voltage - VCCA1.2 V ~ 3.6 V
Voltage - VCCB1.65 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeTri-State, Non-Inverted
Data Rate100Mbps
Operating Temperature-40°C ~ 85°C (TA)
FeaturesAuto-Direction Sensing
Mounting TypeSurface Mount
Package / Case12-UFBGA, CSPBGA
Supplier Device Package12-CSP (1.37x1.87)
