PI4ULS3V204GAEX

In Stock: 23,061

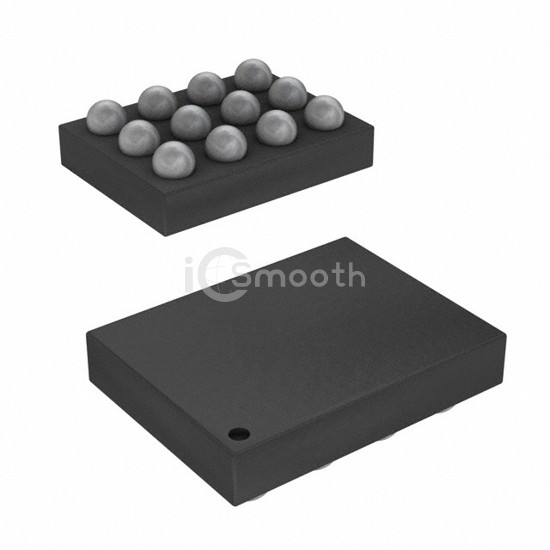

PI4ULS3V204GAEX - Diodes Incorporated - Logic - Translators, Level Shifters
REF: PI4ULS3V204GAEX Diodes Incorporated
PI4ULS3V204GAEX

Diodes Incorporated

IC TRNSLTR BIDIRECTIONAL 12CSP

PI4ULS3V204GAEX is a Logic - Translators, Level Shifters manufactured by Diodes Incorporated. IC TRNSLTR BIDIRECTIONAL 12CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, CSPBGA, output type Open Drain, Push-Pull.

Datasheet Request a Quote

In Stock: 23,061

Tiered Pricing USD
1+ $0.9100 —
10+ $0.6490 -29%
25+ $0.5848 -36%
100+ $0.5143 -43%
250+ $0.4806 -47%
500+ $0.4604 -49%
1,000+ $0.4590 -50% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits4
Channels per Circuit1
Voltage - VCCA1.1 V ~ 3.6 V
Voltage - VCCB1.1 V ~ 3.6 V
Input Signal-
Output Signal-
Output TypeOpen Drain, Push-Pull
Data Rate2Mbps, 24Mbps
Operating Temperature-40°C ~ 85°C (TA)
FeaturesAuto-Direction Sensing
Mounting TypeSurface Mount
Package / Case12-UFBGA, CSPBGA
Supplier Device Package12-CSP (1.37x1.87)
