PI4ULS3V16AE

In Stock: 8,692

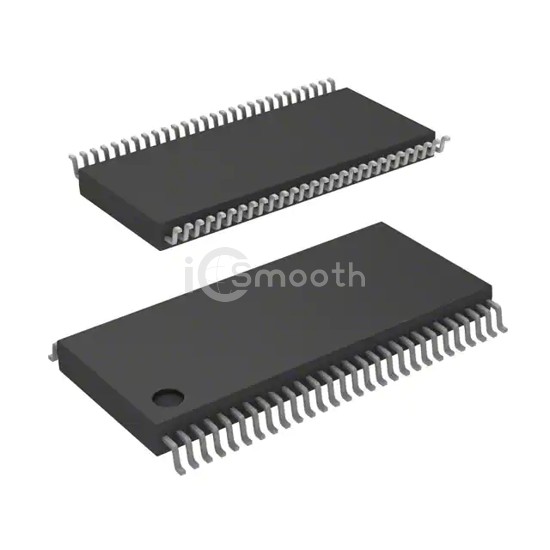

PI4ULS3V16AE - Diodes Incorporated - Logic - Translators, Level Shifters
REF: PI4ULS3V16AE Diodes Incorporated
PI4ULS3V16AE

Diodes Incorporated

IC TRNSLTR BIDIRECTIONAL 56TSSOP

PI4ULS3V16AE is a Logic - Translators, Level Shifters manufactured by Diodes Incorporated. IC TRNSLTR BIDIRECTIONAL 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 56-TFSOP (0.240", 6.10mm Width), output type Tri-State, Non-Inverted.

Datasheet Request a Quote

In Stock: 8,692

Specifications

16 parameters
Product StatusObsolete
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits2
Channels per Circuit8
Voltage - VCCA1.2 V ~ 3.6 V
Voltage - VCCB1.2 V ~ 3.6 V
Input Signal-
Output Signal-
Output TypeTri-State, Non-Inverted
Data Rate180Mbps
Operating Temperature-40°C ~ 85°C (TA)
FeaturesAuto-Direction Sensing
Mounting TypeSurface Mount
Package / Case56-TFSOP (0.240", 6.10mm Width)
Supplier Device Package56-TSSOP
