PI3PCIE3412ZHE+DAX

In Stock: 6,537

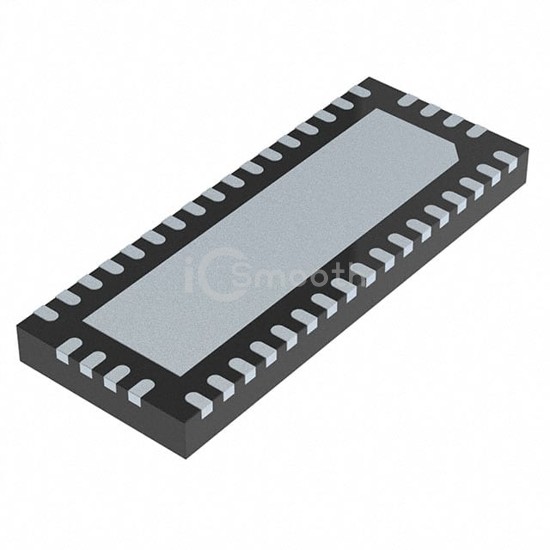

PI3PCIE3412ZHE+DAX - Diodes Incorporated - Interface - Analog Switches - Special Purpose
REF: PI3PCIE3412ZHE+DAX Diodes Incorporated
PI3PCIE3412ZHE+DAX

Diodes Incorporated

PCIE SWITCH V-QFN3590-42 T&R 3.5

PI3PCIE3412ZHE+DAX is a Interface - Analog Switches - Special Purpose manufactured by Diodes Incorporated. PCIE SWITCH V-QFN3590-42 T&R 3.5. Key specifications: mounting type Surface Mount, package / case 42-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,537

Specifications

14 parameters
Product StatusObsolete
ApplicationsPCI Express®
Multiplexer/Demultiplexer Circuit2:1
Switch Circuit-
Number of Channels4
On-State Resistance (Max)5Ohm (Typ)
Voltage - Supply, Single (V+)3V ~ 3.6V
Voltage - Supply, Dual (V±)-
-3db Bandwidth8.2GHz
FeaturesBi-Directional, SATA, USB 3.0
Operating Temperature-
Mounting TypeSurface Mount
Package / Case42-VFQFN Exposed Pad
Supplier Device Package42-TQFN (9x3.5)
