PI3L500-AZFE

In Stock: 2,715
PI3L500-AZFE - Diodes Incorporated - Interface - Analog Switches - Special Purpose
REF: PI3L500-AZFE Diodes Incorporated
PI3L500-AZFE

Diodes Incorporated

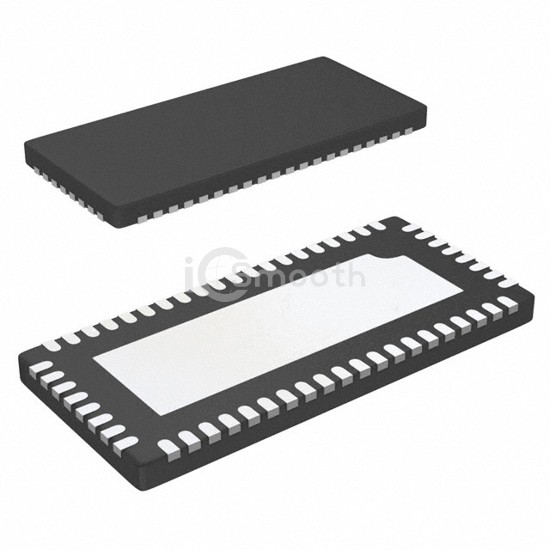

IC MUX/DEMUX 8 X 2:1 56TQFN

PI3L500-AZFE is a Interface - Analog Switches - Special Purpose manufactured by Diodes Incorporated. IC MUX/DEMUX 8 X 2:1 56TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 56-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,715

Specifications

14 parameters
Product StatusObsolete
ApplicationsTelecommunications
Multiplexer/Demultiplexer Circuit2:1
Switch Circuit-
Number of Channels8
On-State Resistance (Max)6.5Ohm
Voltage - Supply, Single (V+)3V ~ 3.6V
Voltage - Supply, Dual (V±)-
-3db Bandwidth550MHz
Features10/100/1000 Base-T
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case56-WFQFN Exposed Pad
Supplier Device Package56-TQFN (11x5)
