PI2EQX6814NJE

In Stock: 8,032

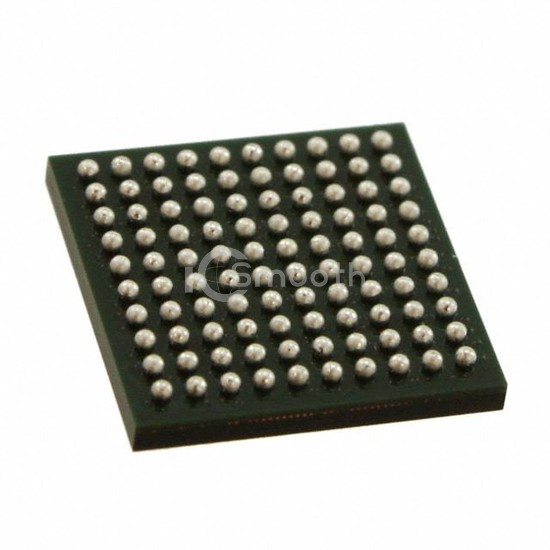

PI2EQX6814NJE - Diodes Incorporated - Interface - Signal Buffers, Repeaters, Splitters
REF: PI2EQX6814NJE Diodes Incorporated
PI2EQX6814NJE

Diodes Incorporated

IC REDRIVER SAS/SATA 8CH 100LBGA

PI2EQX6814NJE is a Interface - Signal Buffers, Repeaters, Splitters manufactured by Diodes Incorporated. IC REDRIVER SAS/SATA 8CH 100LBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.2V, package / case 100-LBGA.

Datasheet Request a Quote

In Stock: 8,032

Specifications

16 parameters
Product StatusObsolete
TypeBuffer, ReDriver
ApplicationsSAS, SATA
InputCML
OutputCML
Data Rate (Max)6.5Gbps
Number of Channels8
Delay Time-
Signal ConditioningInput Equalization, Output De-Emphasis
Capacitance - Input-
Voltage - Supply1.2V
Current - Supply-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case100-LBGA
Supplier Device Package100-LBGA (11x11)
