Name: PAM3112DAB120
Brand: Diodes Incorporated
SKU: PAM3112DAB120
Availability: InStock

REF: PAM3112DAB120 Diodes Incorporated

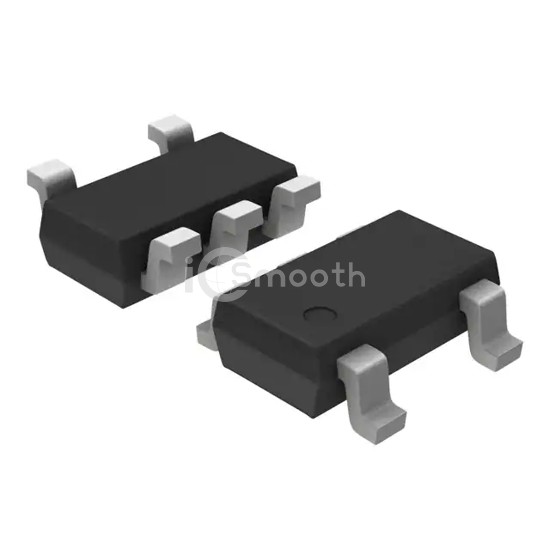

PAM3112DAB120

IC REG LINEAR 1.2V 300MA TSOT25

PAM3112DAB120 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.2V 300MA TSOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SOT-23-5 Thin, TSOT-23-5, current - output 300mA.

Datasheet Request a Quote

In Stock: 5,796

Specifications

18 parameters

Product Status	Not For New Designs
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.3V @ 300mA (Typ)
Current - Output	300mA

Current - Quiescent (Iq)	90 µA
Current - Supply (Max)	-
PSRR	70dB ~ 65dB (100Hz ~ 1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package	TSOT-25
