Name: PAM3101FKF280
Brand: Diodes Incorporated
SKU: PAM3101FKF280
Availability: InStock

REF: PAM3101FKF280 Diodes Incorporated

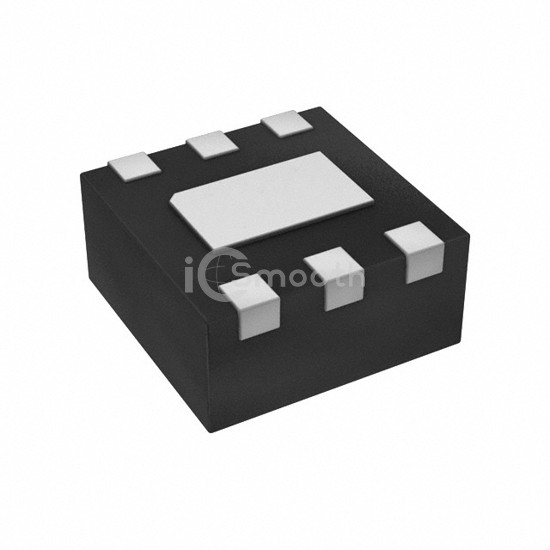

PAM3101FKF280

IC REG LINEAR 2.8V 300MA 6DFN

PAM3101FKF280 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.8V 300MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-WFDFN Exposed Pad, current - supply (max) 90 µA.

Datasheet Request a Quote

In Stock: 4,236

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.45V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	90 µA
Current - Supply (Max)	90 µA
PSRR	70dB ~ 65dB (100Hz ~ 1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	6-DFN (1.6x1.6)
