DXTN58100CFDB-7

In Stock: 8,738

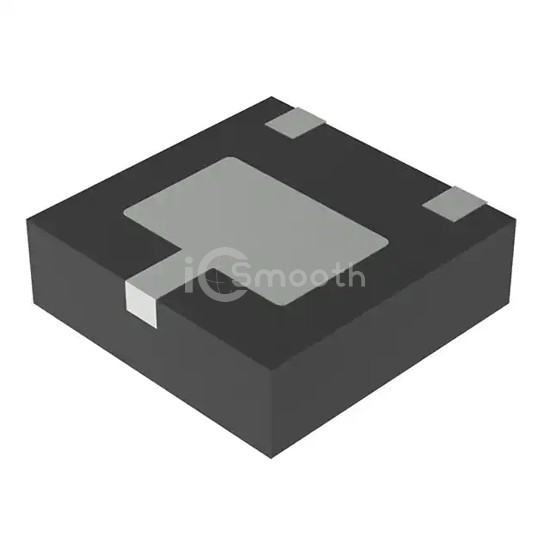

DXTN58100CFDB-7 - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: DXTN58100CFDB-7 Diodes Incorporated
DXTN58100CFDB-7

Diodes Incorporated

SS LOW SAT TRANSISTOR U-DFN2020-

DXTN58100CFDB-7 is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. SS LOW SAT TRANSISTOR U-DFN2020-. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN Exposed Pad, current - collector (ic) (max) 4 A.

Datasheet Request a Quote

In Stock: 8,738

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic260mV @ 400mA, 4A
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 500mA, 2V
Power - Max690 mW
Frequency - Transition150MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-UDFN Exposed Pad
Supplier Device PackageU-DFN2020-3 (Type B)
