DXTN07100BP5Q-13

In Stock: 7,207

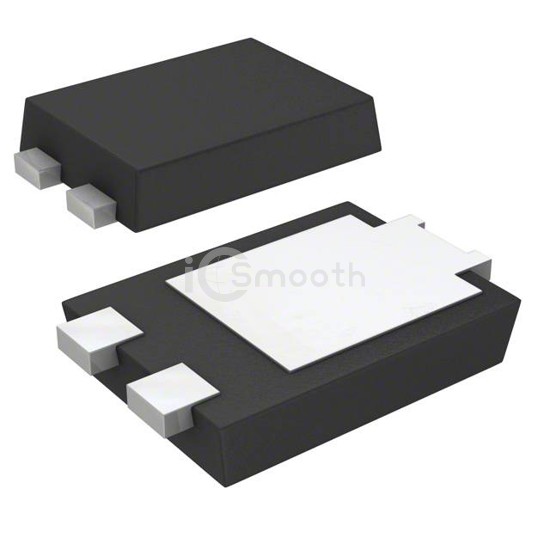

DXTN07100BP5Q-13 - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: DXTN07100BP5Q-13 Diodes Incorporated
DXTN07100BP5Q-13

Diodes Incorporated

TRANS NPN 100V 2A POWERDI5 T&R

DXTN07100BP5Q-13 is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 100V 2A POWERDI5 T&R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerDI™ 5, current - collector (ic) (max) 2 A.

Request a Quote

In Stock: 7,207

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)2 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic500mV @ 200mA, 2A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 500mA, 2V
Power - Max3.2 W
Frequency - Transition175MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CasePowerDI™ 5
Supplier Device PackagePowerDI™ 5
