DXTN07025BFG-7

In Stock: 8,699

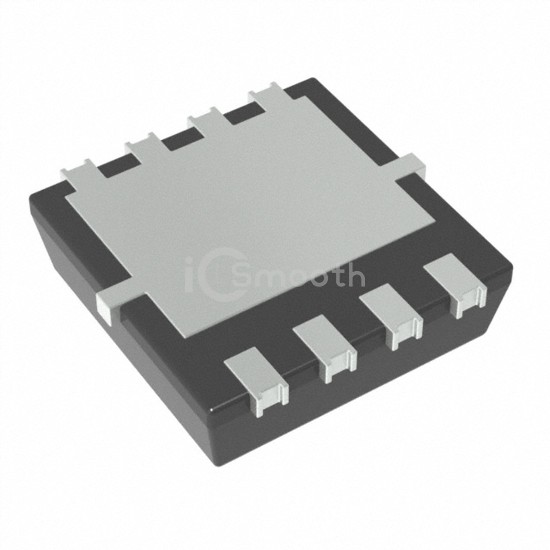

DXTN07025BFG-7 - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: DXTN07025BFG-7 Diodes Incorporated
DXTN07025BFG-7

Diodes Incorporated

TRANS NPN 25V 3A POWERDI3

DXTN07025BFG-7 is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 25V 3A POWERDI3. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 8,699

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)25 V
Vce Saturation (Max) @ Ib, Ic400mV @ 300mA, 3A
Current - Collector Cutoff (Max)20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 1A, 2V
Power - Max900 mW
Frequency - Transition240MHz
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Package / Case8-PowerVDFN
Supplier Device PackagePowerDI3333-8 (SWP) Type UX
