DXT690BP5Q-13

In Stock: 2,923

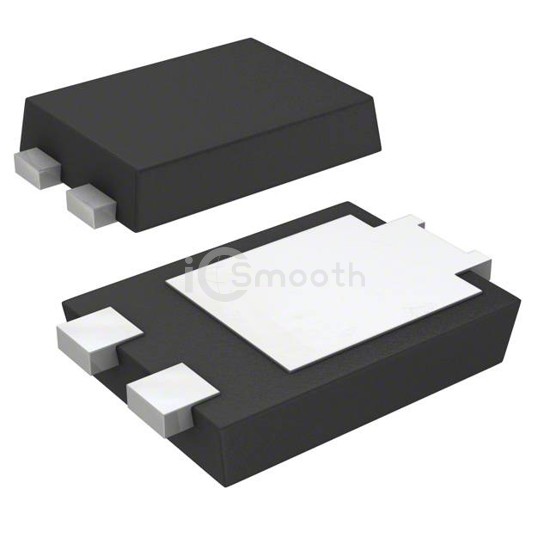

DXT690BP5Q-13 - Diodes Incorporated - Transistors - Bipolar (BJT) - Single
REF: DXT690BP5Q-13 Diodes Incorporated
DXT690BP5Q-13

Diodes Incorporated

TRANS NPN 45V 3A POWERDI5

DXT690BP5Q-13 is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS NPN 45V 3A POWERDI5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerDI™ 5, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 2,923

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)45 V
Vce Saturation (Max) @ Ib, Ic350mV @ 150mA, 3A
Current - Collector Cutoff (Max)20nA
DC Current Gain (hFE) (Min) @ Ic, Vce400 @ 1A, 2V
Power - Max740 mW
Frequency - Transition150MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CasePowerDI™ 5
Supplier Device PackagePowerDI™ 5
