Name: DT1240A-08LP3810-7
Brand: Diodes Incorporated
SKU: DT1240A-08LP3810-7
Price: 0.39 USD
Availability: InStock

REF: DT1240A-08LP3810-7 Diodes Incorporated

DT1240A-08LP3810-7

Diodes Incorporated

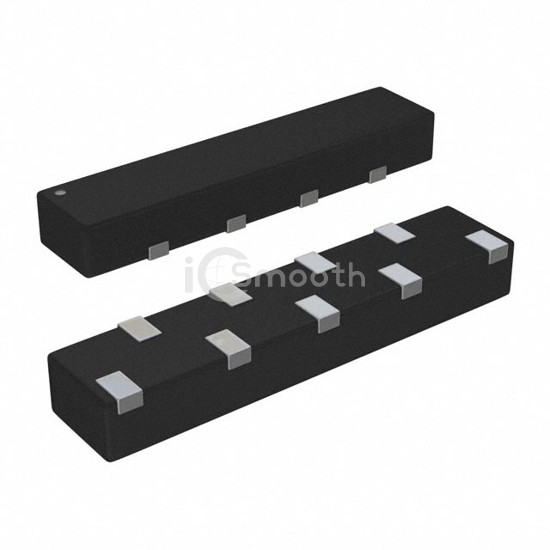

TVS DIODE 3.3VWM 10V U-DFN3810-9

DT1240A-08LP3810-7 is a TVS - Diodes manufactured by Diodes Incorporated. TVS DIODE 3.3VWM 10V U-DFN3810-9. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C (TA), package / case 9-UDFN.

Datasheet Request a Quote

In Stock: 123,441

Tiered Pricing USD

1+ $0.3900 —

10+ $0.2600 -33%

100+ $0.1760 -55%

500+ $0.1370 -65%

1,000+ $0.1050 -73% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	8
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5V
Voltage - Clamping (Max) @ Ipp	10V
Current - Peak Pulse (10/1000µs)	5.5A (8/20µs)

Power - Peak Pulse	55W
Power Line Protection	No
Applications	DVI, HDMI, USB
Capacitance @ Frequency	0.6pF @ 1MHz
Operating Temperature	-55°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	9-UDFN
Supplier Device Package	U-DFN3810-9 (Type B)
