DMTH8028LPSW-13

In Stock: 2,027

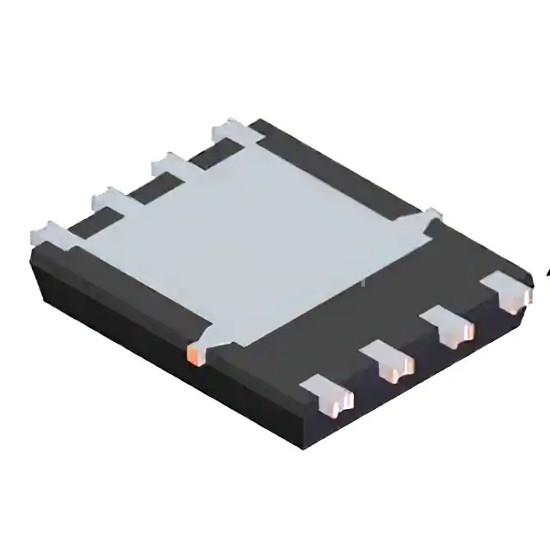

DMTH8028LPSW-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMTH8028LPSW-13 Diodes Incorporated
DMTH8028LPSW-13

Diodes Incorporated

MOSFET BVDSS: 61V~100V POWERDI50

DMTH8028LPSW-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET BVDSS: 61V~100V POWERDI50. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,027

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C41.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs25mOhm @ 5A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds641 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.9W (Ta), 65W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerDI5060-8 (Type UX)
Package / Case8-PowerTDFN
