Name: DMTH6016LFVWQ-13
Brand: Diodes Incorporated
SKU: DMTH6016LFVWQ-13
Price: 0.27 USD
Availability: InStock

REF: DMTH6016LFVWQ-13 Diodes Incorporated

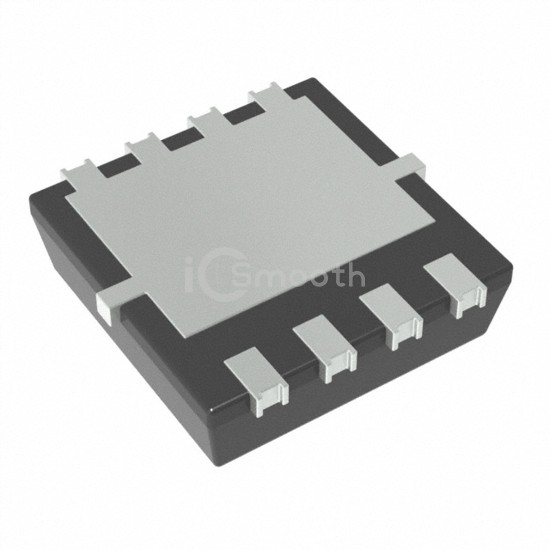

DMTH6016LFVWQ-13

Diodes Incorporated

MOSFET N-CH 60V 41A POWERDI3333

DMTH6016LFVWQ-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 41A POWERDI3333. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 8,365

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	41A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	16mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.1 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	939 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.17W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	PowerDI3333-8 (SWP) Type UX
Package / Case	8-PowerVDFN
