DMTH4014LPD-13

In Stock: 7,234

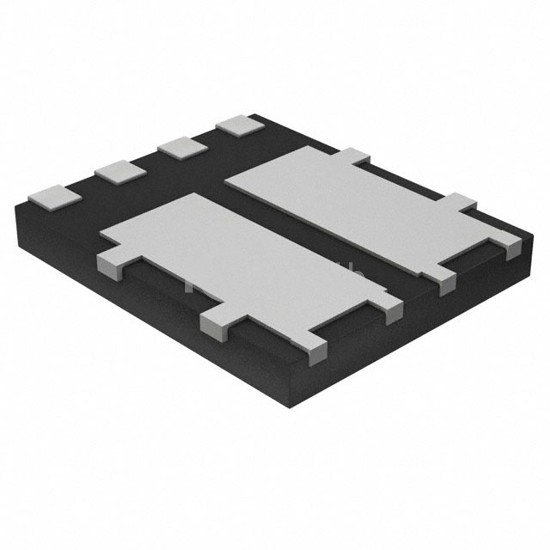

DMTH4014LPD-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMTH4014LPD-13 Diodes Incorporated
DMTH4014LPD-13

Diodes Incorporated

MOSFET BVDSS: 31V-40V POWERDI506

DMTH4014LPD-13 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 31V-40V POWERDI506. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 2.41W (Ta), 42.8W (Tc).

Request a Quote

In Stock: 7,234

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C10.6A (Ta), 43.6A (Tc)
Rds On (Max) @ Id, Vgs15mOhm @ 20A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds733pF @ 20V
Power - Max2.41W (Ta), 42.8W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePowerDI5060-8
