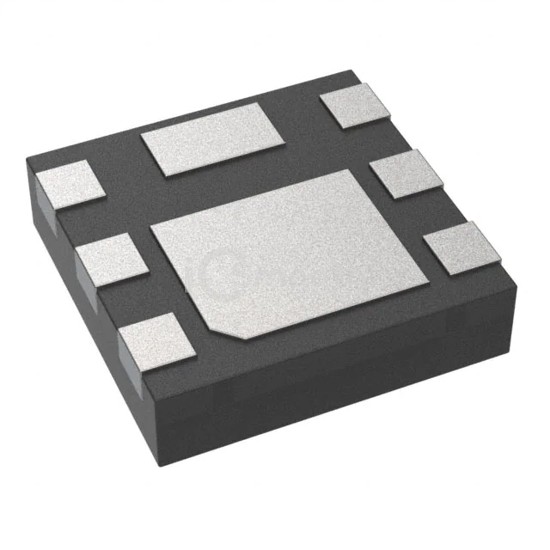

Name: DMTH4008LFDFWQ-7
Brand: Diodes Incorporated
SKU: DMTH4008LFDFWQ-7
Price: 0.67 USD
Availability: InStock

REF: DMTH4008LFDFWQ-7 Diodes Incorporated

DMTH4008LFDFWQ-7

Diodes Incorporated

MOSFET N-CH 40V 11.6A 6UDFN

DMTH4008LFDFWQ-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 40V 11.6A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,841

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	11.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1030 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	990mW (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (SWP) (Type F)
Package / Case	6-UDFN Exposed Pad
