DMT69M8LFV-13

In Stock: 9,722

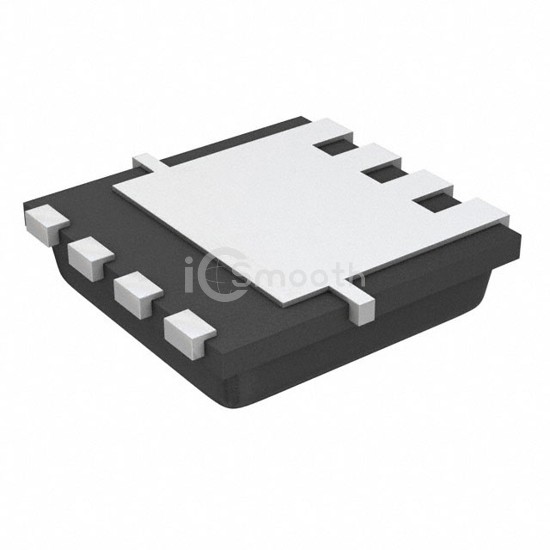

DMT69M8LFV-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMT69M8LFV-13 Diodes Incorporated
DMT69M8LFV-13

Diodes Incorporated

MOSFET N-CH 60V 45A POWERDI3333

DMT69M8LFV-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 45A POWERDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 9,722

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.5mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33.5 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1925 pF @ 30 V
FET Feature-
Power Dissipation (Max)42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (Type UX)
Package / Case8-PowerVDFN
