Name: DMT68M8LFV-7
Brand: Diodes Incorporated
SKU: DMT68M8LFV-7
Price: 0.82 USD
Availability: InStock

REF: DMT68M8LFV-7 Diodes Incorporated

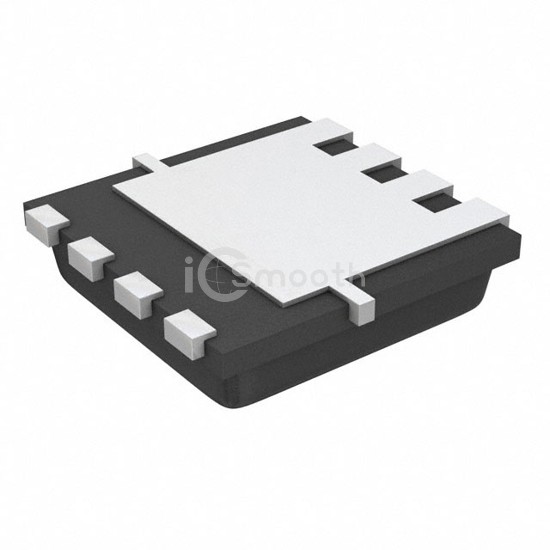

DMT68M8LFV-7

Diodes Incorporated

MOSFET N-CH 60V 54.1A PWRDI3333

DMT68M8LFV-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 54.1A PWRDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,495

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	54.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.5mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2078 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 41.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8 (Type UX)
Package / Case	8-PowerVDFN
