DMT6015LFV-13

In Stock: 3,885

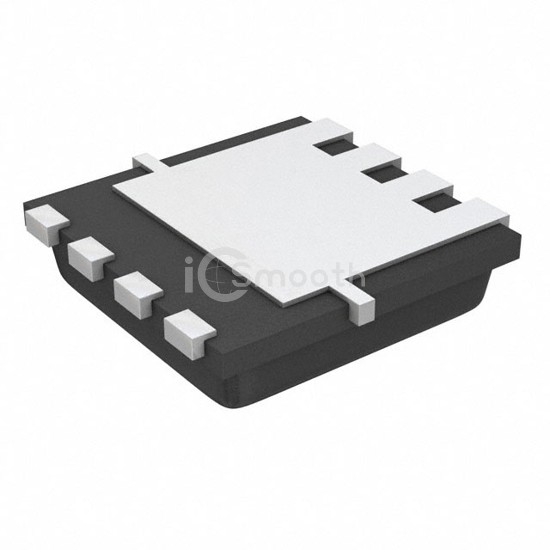

DMT6015LFV-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMT6015LFV-13 Diodes Incorporated
DMT6015LFV-13

Diodes Incorporated

MOSFET N-CH 60V PWRDI3333

DMT6015LFV-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V PWRDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 3,885

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C9.5A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs16mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.9 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1103 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.2W (Ta), 30W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (Type UX)
Package / Case8-PowerVDFN
