Name: DMT6013LSS-13
Brand: Diodes Incorporated
SKU: DMT6013LSS-13
Price: 0.21 USD
Availability: InStock

REF: DMT6013LSS-13 Diodes Incorporated

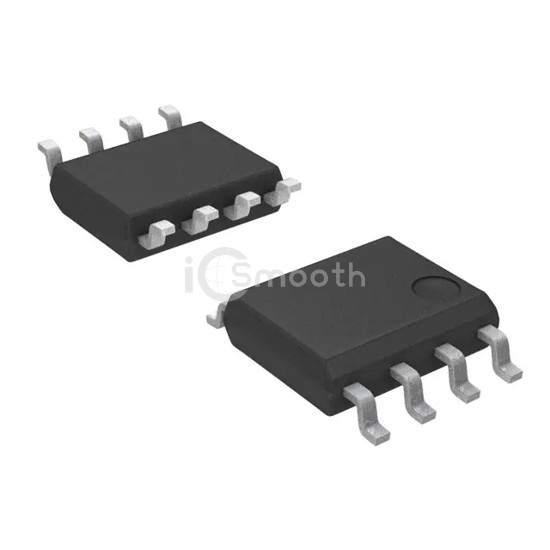

DMT6013LSS-13

Diodes Incorporated

MOSFET N-CH 60V 10A 8SO

DMT6013LSS-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 10A 8SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,445

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	14.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1081 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
