Name: DMT6012LPSW-13
Brand: Diodes Incorporated
SKU: DMT6012LPSW-13
Price: 0.24 USD
Availability: InStock

REF: DMT6012LPSW-13 Diodes Incorporated

DMT6012LPSW-13

Diodes Incorporated

MOSFET BVDSS: 41V~60V POWERDI506

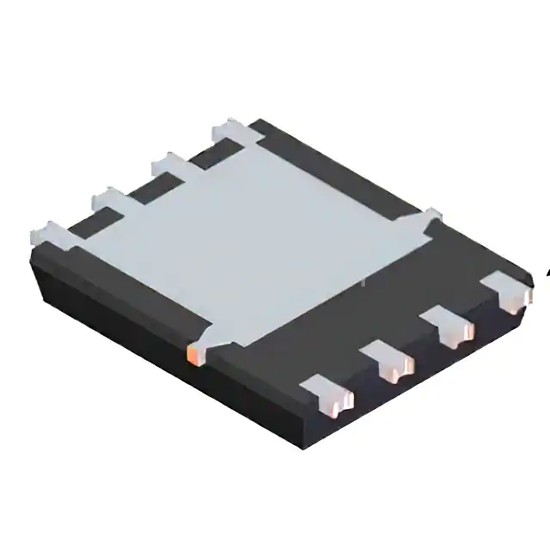

DMT6012LPSW-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET BVDSS: 41V~60V POWERDI506. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,381

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	13.1A (Ta), 31.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1522 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 17.9W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	PowerDI5060-8 (Type UX)
Package / Case	8-PowerTDFN
