Name: DMT4008LFV-7
Brand: Diodes Incorporated
SKU: DMT4008LFV-7
Price: 0.34 USD
Availability: InStock

REF: DMT4008LFV-7 Diodes Incorporated

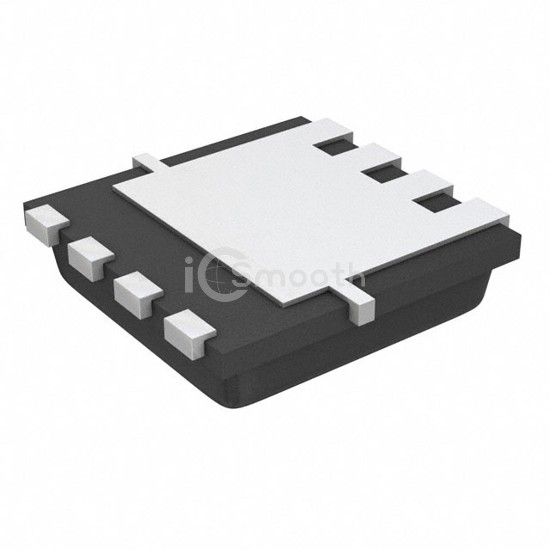

DMT4008LFV-7

Diodes Incorporated

MOSFET N-CH 40V PWRDI3333

DMT4008LFV-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 40V PWRDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 8,363

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	12.1A (Ta), 54.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.9mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.1 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1179 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta), 35.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8 (Type UX)
Package / Case	8-PowerVDFN
