Name: DMT3008LFDF-13
Brand: Diodes Incorporated
SKU: DMT3008LFDF-13
Price: 0.32 USD
Availability: InStock

REF: DMT3008LFDF-13 Diodes Incorporated

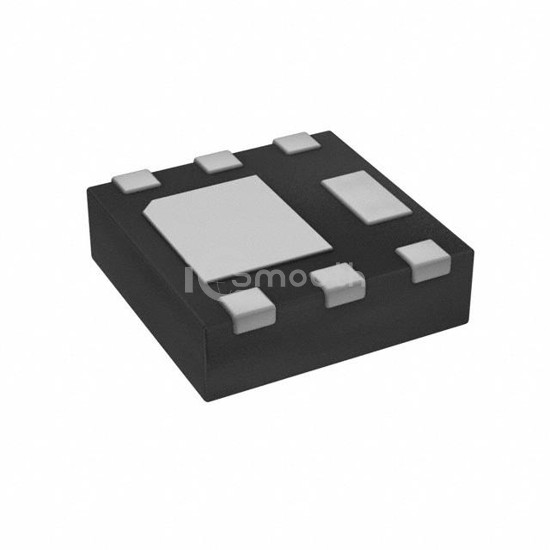

DMT3008LFDF-13

Diodes Incorporated

MOSFET N-CH 30V 12A 6UDFN

DMT3008LFDF-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 12A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,456

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	886 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	800mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type F)
Package / Case	6-UDFN Exposed Pad
